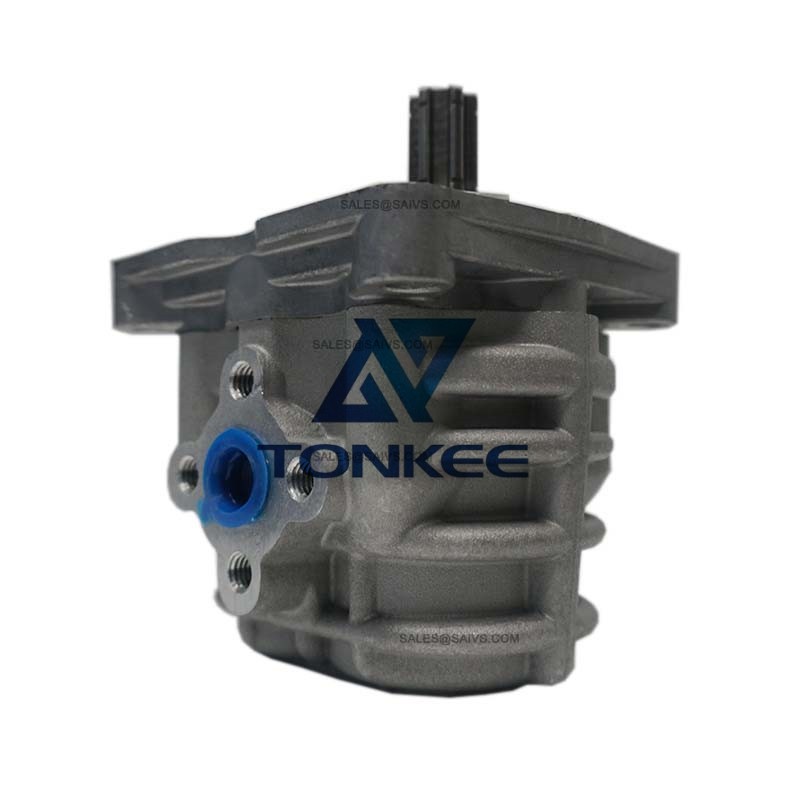

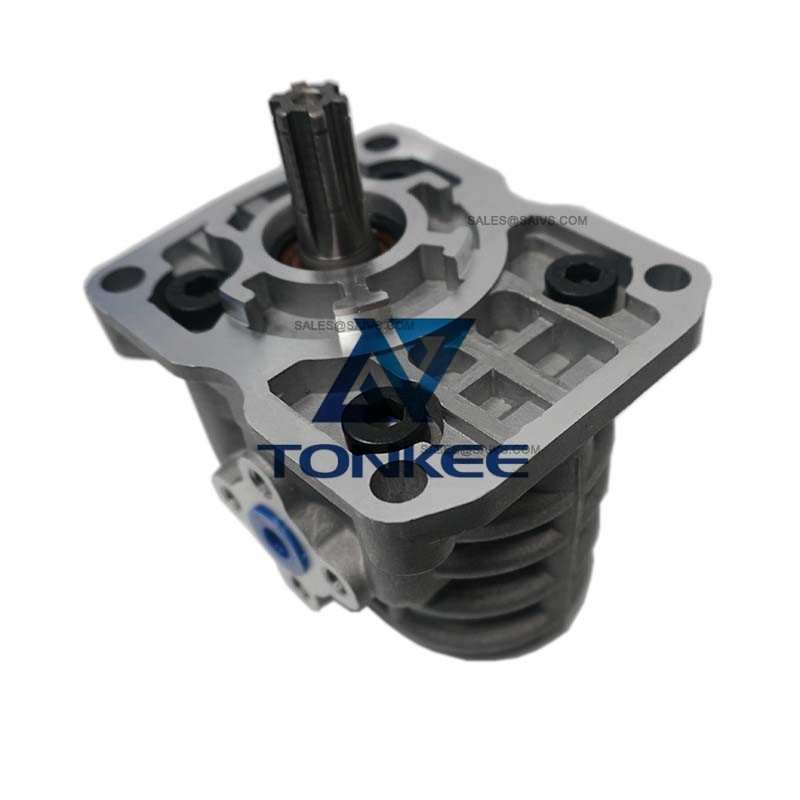

Model Designation: NSH 10M, 32M, 32A, 50M represents the specific model of the gear pump. The different alphanumeric combinations might indicate different variants with specific features such as flow rate, pressure rating, or installation configurations.
Performance Specifications
Flow Rate
The flow rate is a crucial parameter. It could be measured in liters per minute (L/min) or gallons per minute (GPM). For example, the NSH 10M might have a flow rate of around 10 - 15 L/min, while the 50M could have a flow rate of 40 - 50 L/min, depending on the operating speed and pressure.
The flow rate might also vary depending on the viscosity of the fluid being pumped. As the viscosity of the fluid increases, the flow rate might decrease slightly.
Pressure Rating
Rated pressure is typically expressed in bars or pounds per square inch (psi). The pump could have a maximum operating pressure of, say, 100 - 200 bars (1450 - 2900 psi). For example, the 32M model might have a rated pressure of 150 bars, which indicates the maximum pressure the pump can handle continuously without significant damage or performance degradation.
There may also be a peak pressure rating that the pump can withstand for a short period, usually higher than the rated pressure, to account for pressure spikes in the system.
Speed Range
The gear pump will have a defined speed range, usually measured in revolutions per minute (rpm). It might operate within a range of 500 - 3000 rpm. For instance, the optimal operating speed of the NSH 32A could be around 1500 - 2000 rpm, where it can provide the best performance in terms of flow rate and efficiency.
