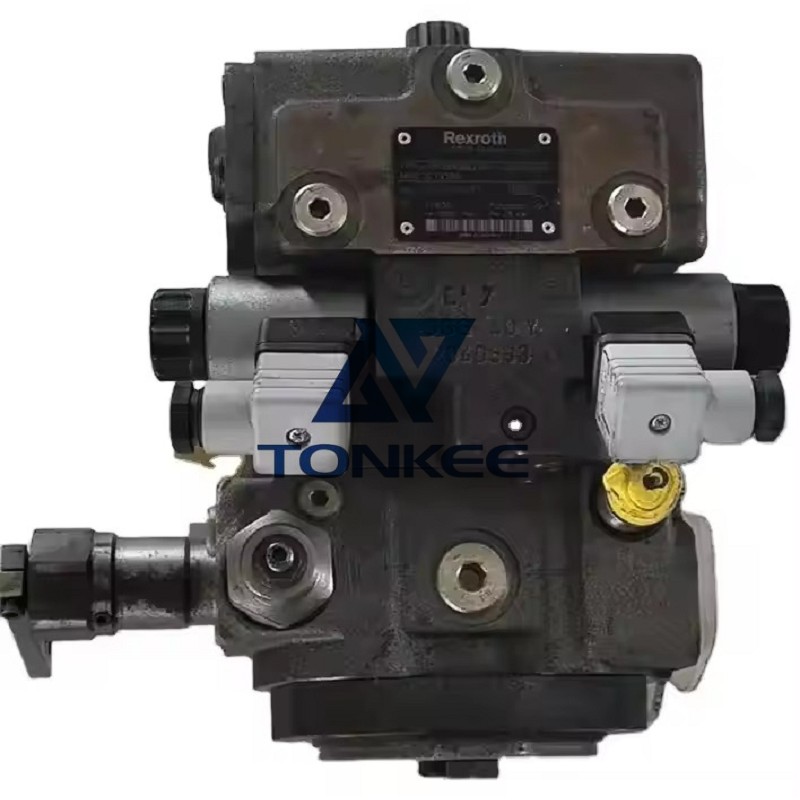

The nominal displacement of the A10VG28 pump is 28 cm³/rev. This value determines the volume of hydraulic fluid the pump can displace in one revolution, which is important for calculating the flow rate at a given rotational speed.
Operating Pressure
Rated Pressure: The A10VG28 pump is designed to operate at a rated pressure typically in the range of 280 bar (28 MPa) to 350 bar (35 MPa). This pressure range allows the pump to provide sufficient power for various hydraulic applications, such as in industrial machinery, mobile equipment, and automation systems.
Maximum Pressure: The pump can withstand a maximum pressure of up to 400 bar (40 MPa) for short - term operations. This extra pressure capacity enables the pump to handle sudden high - load situations and pressure surges.
