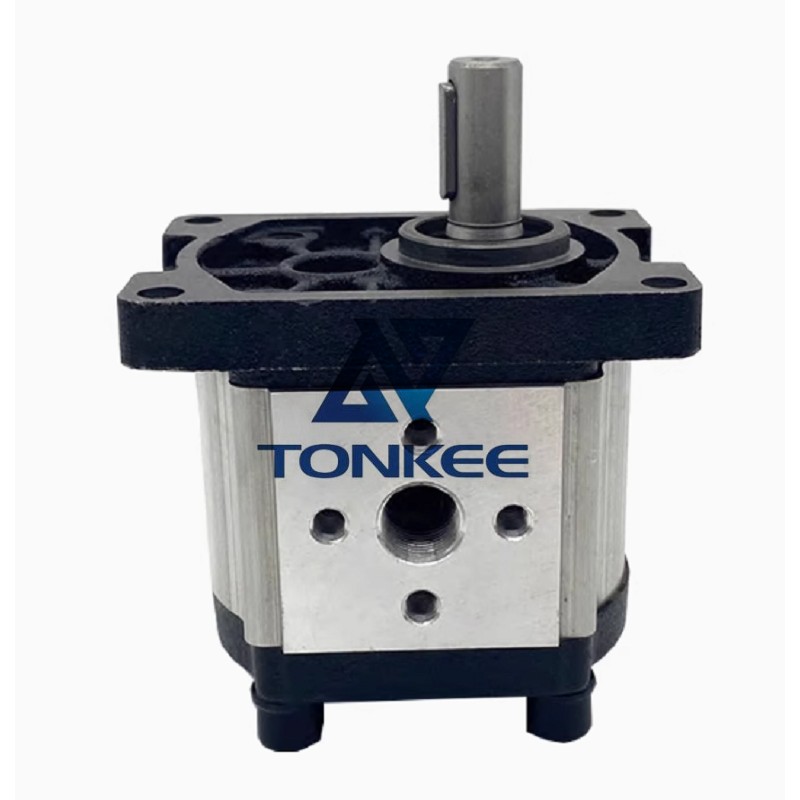

Model: CBN-F304, CBT-F306, F310, F312, F316, F318, F320, F325
Type: Hydraulic gear pump
Material: Usually cast aluminum or cast iron1.
Drive Mode: Electric drive1.
Rotation Direction: It can be left-hand rotation or right-hand rotation, and some models can be customized.
Performance Specifications
Pressure: The medium pressure is generally about 20MPa.
Flow: The specific flow rate needs to be determined according to the model and working conditions.
Efficiency: The volumetric efficiency and mechanical efficiency are relatively high, and the total efficiency is generally between 70% and 90%.
Installation and Connection Specifications
Shaft Type: Round key shaft, spline or flat key shaft are available.
Inlet and Outlet Thread: The oil inlet thread is usually PT 1/2, and the oil outlet thread is PT 3/8.
Other Specifications
Working Temperature: The normal working temperature range is -20°C to 80°C, and the best working temperature is 15°C to 60°C.
Noise: The design of the gear pump minimizes noise levels, and the noise is generally less than 70dB.
Seal: The sealing performance is good, and usually uses mechanical seals or lip seals to prevent oil leakage.
It should be noted that the above specifications are for reference only, and the specific parameters may vary depending on the manufacturer and actual product.
