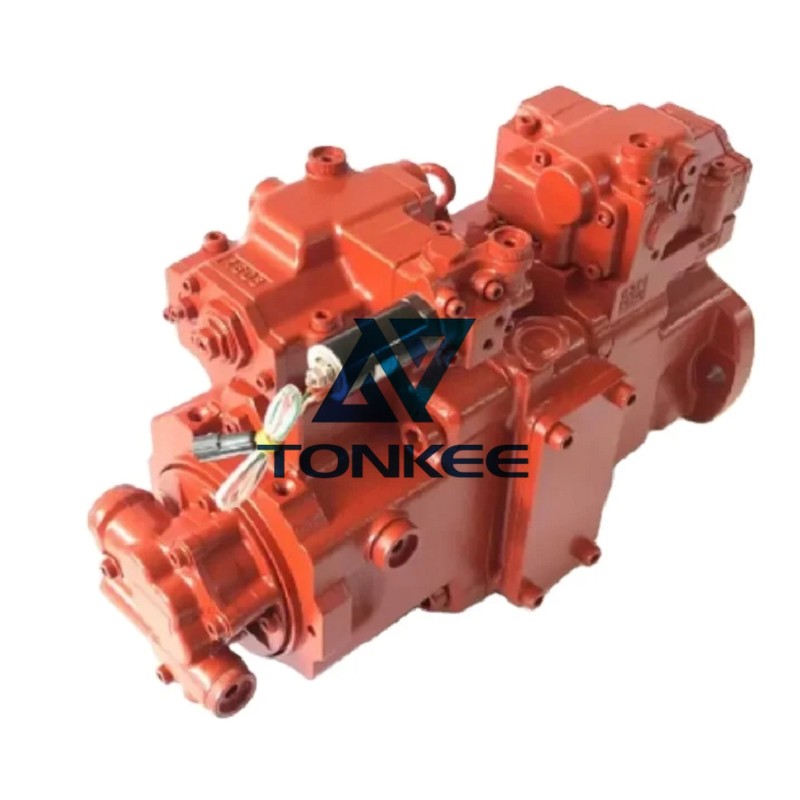

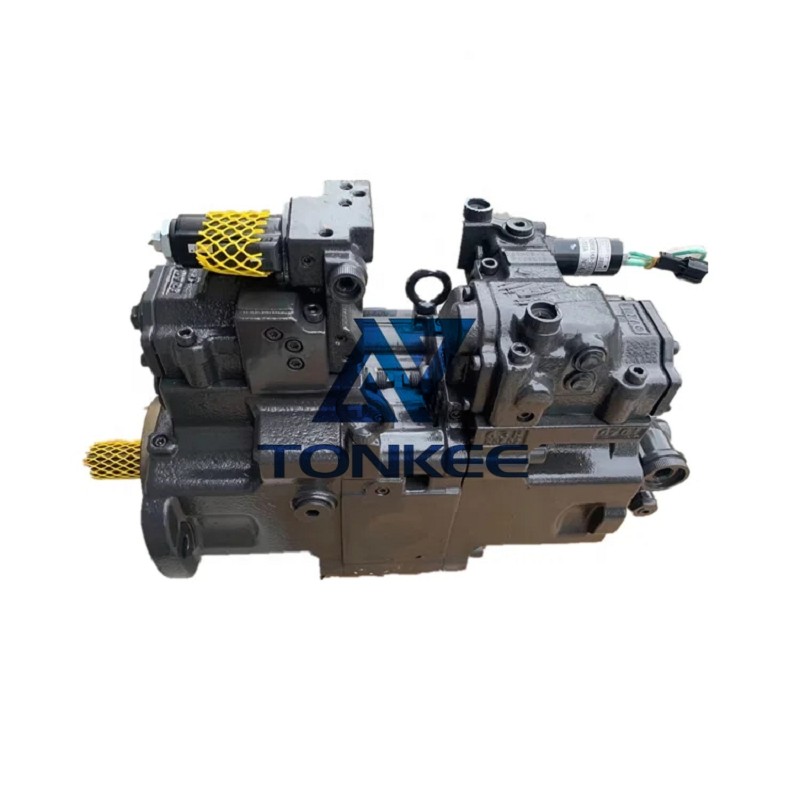

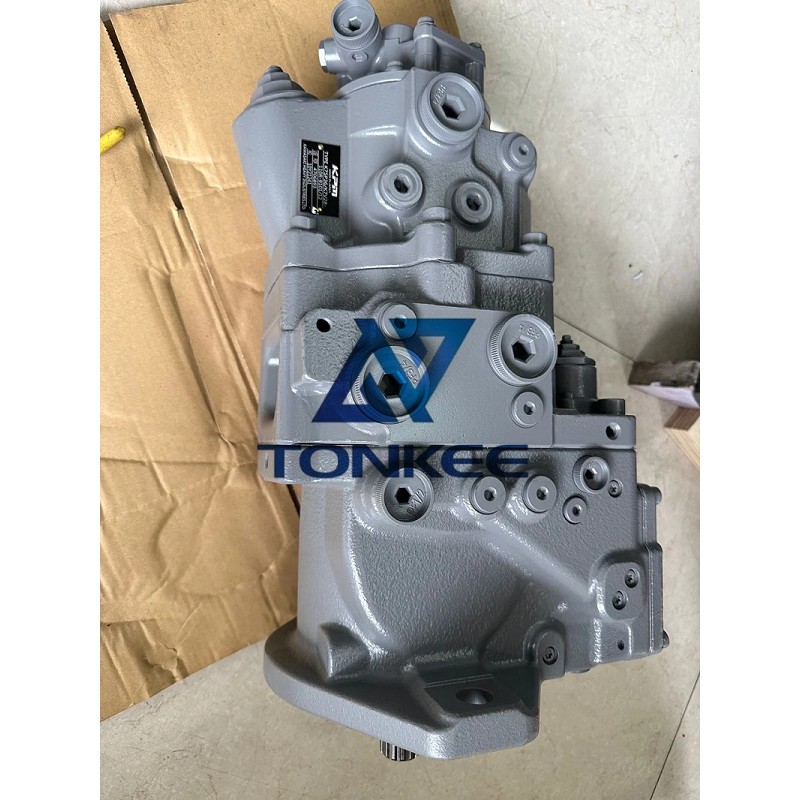

Type: Axial piston pump.
Displacement: 63 cc/rev. This is the volume of hydraulic fluid that the pump displaces per revolution of the drive shaft.
Rated Pressure: Usually, it is around 350 bar. This is the maximum pressure that the pump can continuously operate at under normal conditions.
Maximum Pressure: It can reach up to 420 bar. This is the peak pressure that the pump can withstand for short periods.
Rated Speed: The rated speed is typically 1800 - 2000 rpm. Operating the pump within this speed range ensures optimal performance and efficiency.
Maximum Flow: At the rated speed and displacement, the maximum flow rate can be calculated as displacement × rated speed. For this pump, it is approximately 113 - 126 L/min.
Drive Power: The required drive power is related to the pressure and flow. It is usually in the range of 60 - 80 kW, depending on the specific operating conditions.
Weight: The approximate weight of the pump is about 50 - 60 kg, which may vary slightly depending on the specific configuration and additional components.
